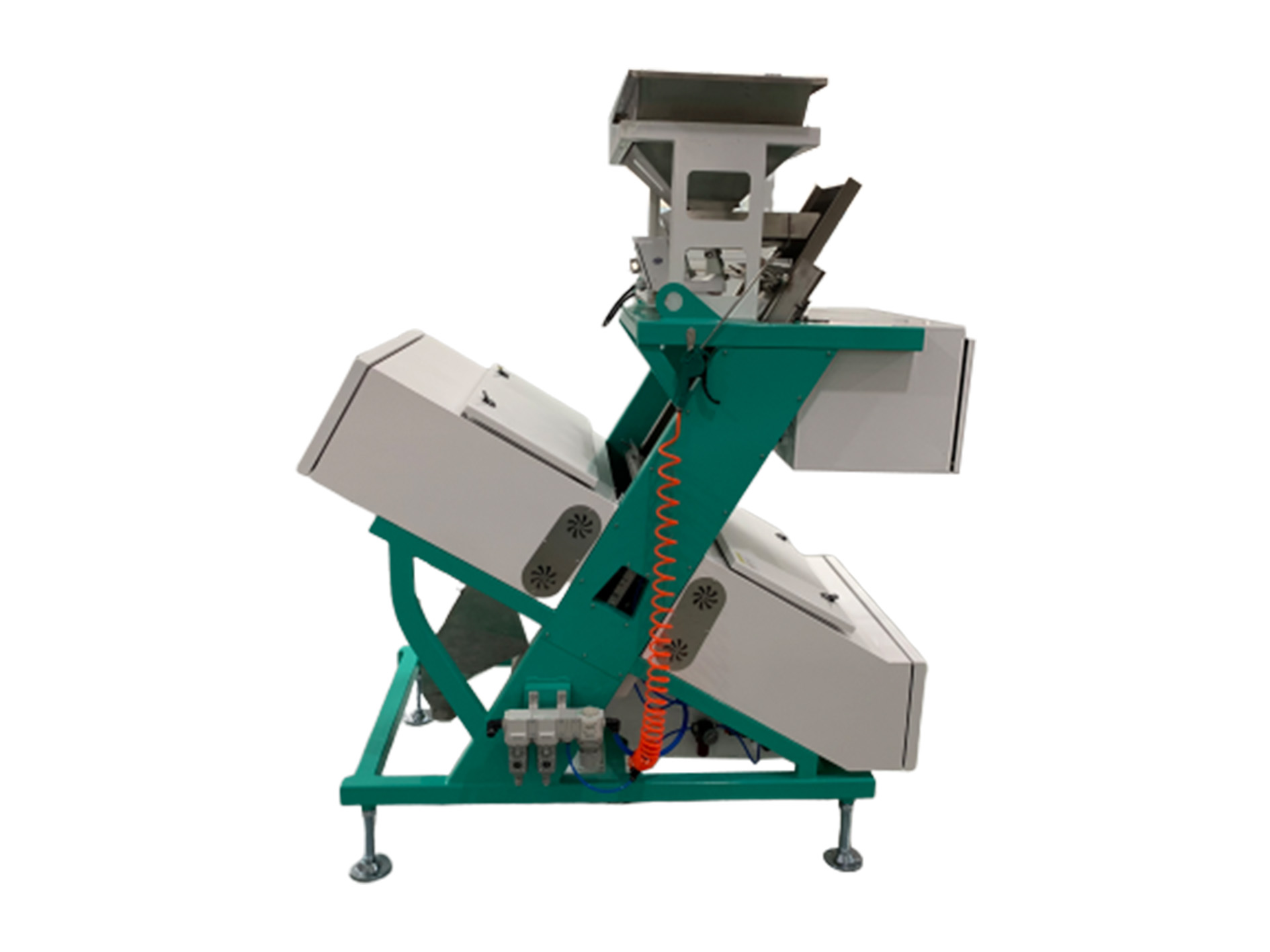

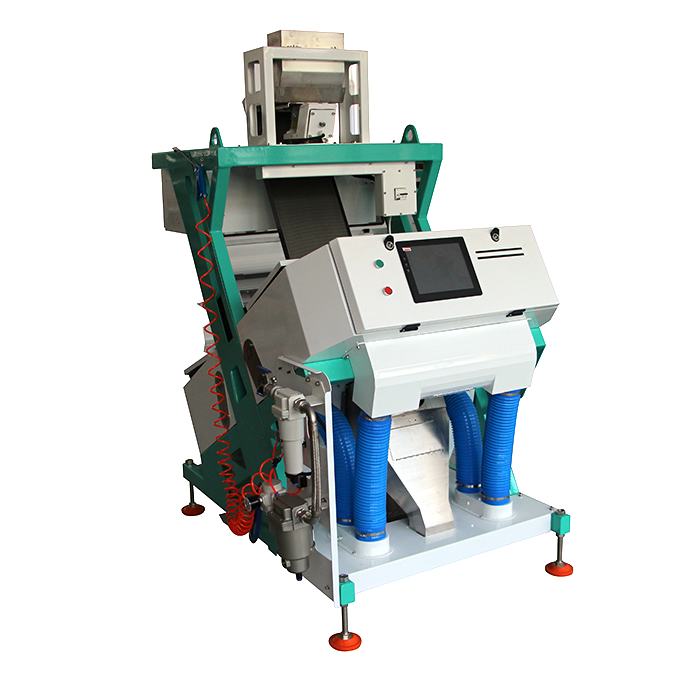

1 Chute 64 Channels Rice Colour Sorter Machine With Software Operating Platform

Product Categories

Hefei Branagh Photoelectric Technology Co.,Ltd.,

Contact Now

1 Chute 64 Channels Rice Colour Sorter Machine With Software Operating Platform

Name: 1 Chute 64 Channels Rice Colour Sorter Machine With Software Operating Platform
Brand: Nage
Price: 6 USD

Wholesale 1 Chute 64 Channels Rice Colour Sorter Machine With Software Operating Platform from china suppliers

Place of Origin : Anhui, China

Brand Name : Nage

Certification : CE,SGS

Supply Ability : 20 Set/Sets per Month

Packaging Details : Factory's standard export carton box package suitable for container shipment

MOQ : >=1 Sets

Price : $6,500.00

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Home Use

After Warranty Service : Spare parts

Local Service Location : None

Showroom Location : None

Condition : New

Production Capacity : 0.5-1.5 T/H

Voltage : 220V/50Hz

Power(W) : 1000

Weight : 320KG

Dimension(L*W*H) : 910*1475*1629

Warranty : 1 year

After-sales Service Provided : Field maintenance and repair service

Product name : RGB CCD 1 Chute 64 Channels Rice Color Sorting Machine

Application : Rice Processing

ChutesNo. : 64

ProductOutput(T/H) : 0.5-1.5

SortingAccuracy(%) : >=99.9

OptimizedCarryover(BadGood) : >=8:1

Weight(kg) : 320

Minimum ldentification : 0.03

Power Supply(V/Hz) : AC220/50

Dimension(L*W*H)mm : 910*1476*1629

Port : shanghai

Contact Now

RGB CCD 1 Chute 64 Channels Rice Color Sorting Machine

Product Description

Intelligent CCD Color Sorter

1 Chute 64 Channels Rice Colour Sorter Machine With Software Operating Platform

1.The above data is based on the 5% contamination glutinous rice material, the real output depends on different materials and its contamination.
2.If products update, no further notice. Please refer to the real machine.

Accepted Reject

Product Paramenters

Lens and image acquisition

1.CCD true color selection technology, high-definition color identification, high-speed sorting, more accurate identification.

2.5400pixels High Precision Professional Lens Ensure Image Clarity and Accuracy. The highest resolution is as high as 0.02mm2, which can accurately identify tiny flaws and spots in materials.

LED light source

1.The newly designed LED light source has high brightness, long service life and good heat dissipation, and can meet the color selection of various materials and colors.

2.Different materials do not need to replace the light source.

Image processing algorithm

1.Powerful image processing algorithm, using color selection plus shape selection combined algorithm, can accurately identify the material color and shape

2.Photo capture technology and high-definition imaging technology, can define color selection of materials and colors

channel

1.Special anodizing process, large output and uniformly laying-off.

2.Can be equipped with waterfall flat plate and narrow chute channel to meet the color selection of different materials

Solenoid valve

1.High quality solenoid valves imported from home and abroad are available for customers to choose independently.

2.High quality solenoid valve is adopted, with high frequency and long service life. At the same time of ensuring the output, reduce the carrying-out ratio.

human-computer interface

1.The powerful software operating platform is simple to operate and easy to learn.

2.Support for multiple languages, support for saving and switching of multiple color selection modes

Examples of Sorting

Company Introduction

Hefei Branagh Photoelectric Technology Co.,Ltd., is engaged in a high-end intelligent color sorting machine research and
development, production and sales as one of the high-tech enterprises. Our company is dedicated to providing high reliability,high quality, safety and easy-to-operate material sorting technology solutions for customers in the field of food and industrial sorting. We have a team that is determined to make progress and keep innovating to form a business model that is oriented toward quality, efficiency and customer satisfaction, and continuously expands emerging applications. With the vision of enriching and improving the quality of life of human beings, we use the expertise and experience in the field of opto-mechatronics to help people in different regions quickly and accurately classify the defective materials with chromatic aberration and improve the use level to create the most Good economic and social benefits. At present products have been widely used in rice, grains, plastics,minerals, medicine, seeds, beans, nuts, tea and other food, cash crops and industrial products intelligent sorting.

Packing&Shipping

After Sales Service

1.We provide customer with one year free repair and maintenance for complete machine.
2.We also provide lifetime professional training and technical guidance service.

FAQ

1.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.

2.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you, how to use when he go to your country to debug the machine.

3.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.

4.Q:How about the guarantee period?
A:One year.

5.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK.Alibaba Trade Assurance is your best choice.

6.Q:Do you have any other spare parts for the customer?
A:Yes,we will supply you some spare parts.

7.Q:Which machine will work together with our color sorter which you can supply?
A:Air compressor,Air tank,Air filters,Air dryer,Light sources,Cleaning brushes,etc
